A.I. matches gait analysis
Šifra GA.I.T

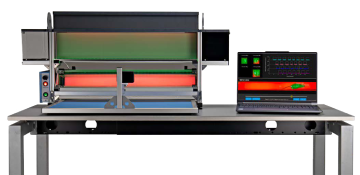

The latest UGO Basile system for analyzing the gait of laboratory mice.
- 100% paw detection accuracy and no manual corrections.
- Much cheaper than other gait systems.
- Compact, tabletop, designed for mice.
Pogledajte ostale proizvode u aplikacijama
Značajke
Features of UGO Basile gait analysis system
- Internal Reflection Illumination is coupled to 45° mirror and a frontal high-speed camera: Accurate identification of paws in ventral view and simultaneous lateral view.
- Cages with individual sliding doors: Easily removable cages to enable smooth and stress-free animal handling. Valid runs are automatically detected without requiring intervention from the researcher.

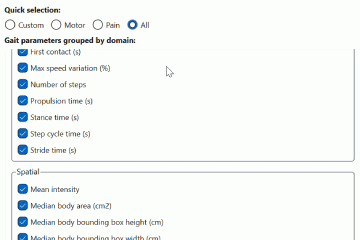

- A.I. detection and analysis software: Image acquisition, comparable run selection and analysis of gait parameters are all accessible from an intuitive user interface for the fastest learning curve and reliable result generation. Experiment recording fully automated. Post hoc analysis fast and intuitive, completed in just a few clicks within minutes.
- Dedicated camera: Pre-calibrated camera ensures high-speed 4K recordings at 119 fps, with no setup required and automatic linear-view correction.

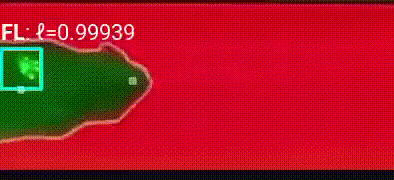

A.I.-Powered Accuracy
No manual paw corrections needed. Automatically detects paws and body parts with virtually 100% accuracy. Faster and more accurate than contrast-based methods, saving researchers’ time.
Compact & Designed for Mice
Tabletop system saves space. Mice walk spontaneously in the mouse-specifically designed corridor.
Ready-to-Use Package
Comes with pre-installed PC, camera and seamless software. No setup or GPU configuration needed: paw identification out of the box.
Tehnički podaci
Motor research
Spatial and Temporal Parameters:
- Stride Length
- Stride Time (variability)
- Swing/Stance Time
- Paw Angle
Interlimb Coordination:
- Regularity Index
- Phase Relationship
Body Parameters:
- Body axis deviation
- Lateral body sway
- Head-body alignment
- Body rotation angle
Tail Parameters:
- Tail-body coordination
- Tail movement amplitude
Pain & inflammation
Load and Support Parameters:
- Duty Cycle
- Paw Print Area
- Paw Intensity/Pressure
- Paw Spread
Compensatory Parameters:
- Base of support
- Weight-shifting patterns
- Body asymmetry index
- Guarding posture
Tail Parameters:
- Tail position relative to body
- Tail elevation angle
- Tail rigidity
Aging research
Stability and Coordination Parameters:
- Stride Length
- Stride Time variability
- Base of Support
- Regularity Index
- Swing Time
Postural Parameters:
- Duty Cycle
- Body stiffness index
- Postural stability
- Lateral body sway
Tail Parameters:
- Tail position relative to body
- Tail movement amplitude
